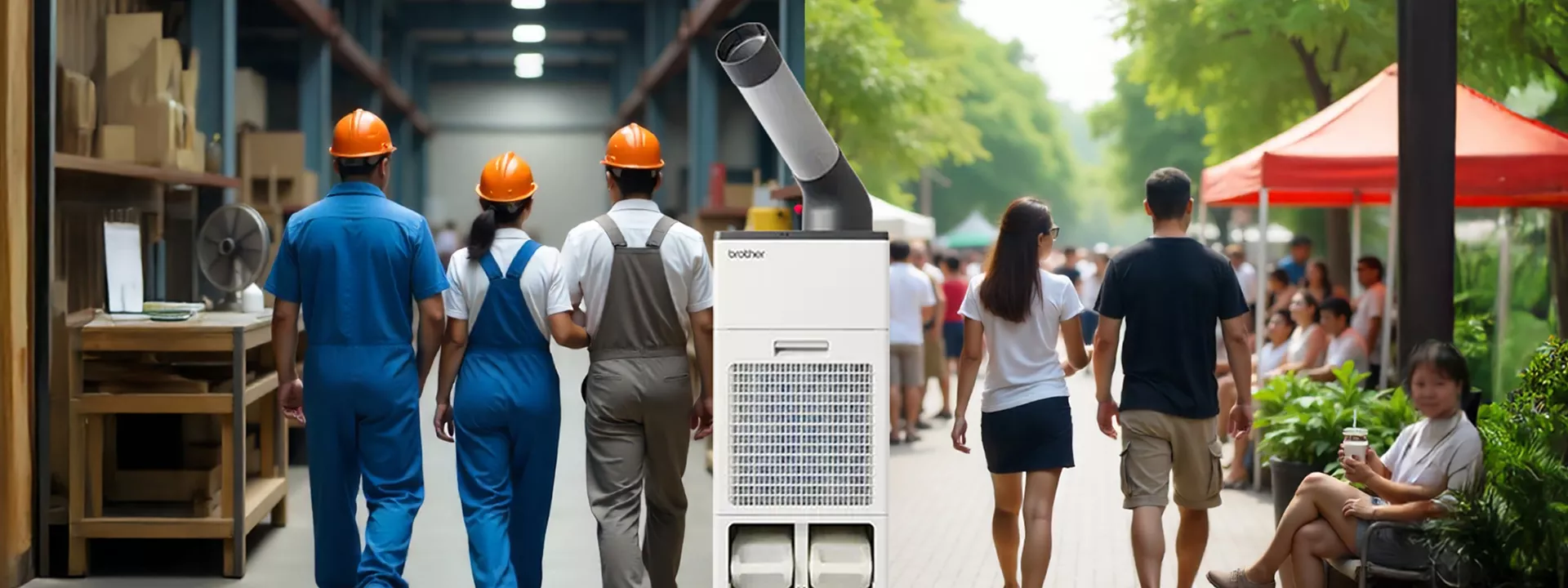

Experience the targeted cooling with our PureDrive. An eco-friendly water-based solution that provides comfortable cooling with low power consumption, no hot air discharge, and easy-to-use function.
Choosing our Pure Drive
Many of the spot coolers used at worksites are heat pump types that discharge hot exhaust air. As a result, the temperature around the machine increases. Additionally, electricity expenses are high and disposing of fluorocarbon refrigerants used in these systems incurs handling costs.
Cooling fans are also common, but it is difficult to do the maintenance like refilling the water or cleaning. Also, sometimes the exhausted air is not cool enough.
PureDrive, a spot cooler using Brother’s unique water-based cooling system “TwinAqua”, solves these longstanding issues.
Product Highlights
No Exhaust Heat
Energy & Cost Saving
Powerful Cold Air
Easy-to-Use No Exhaust Heat

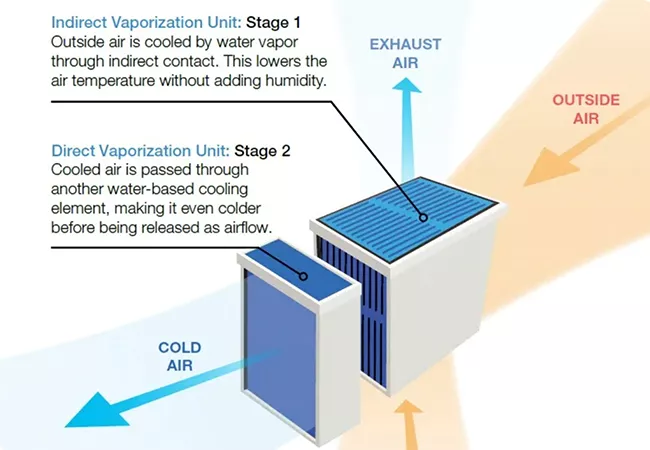

Brother’s new cooling technology and No waste heat.
Developed by Brother, this combines both indirect and direct vaporization cooling.
TwinAqua delivers powerful and comfortable airflow while using gentle, water-based cooling.
This advanced cooling tech is environmentally friendly, with no exhaust heat, no Freon, and low energy consumption.

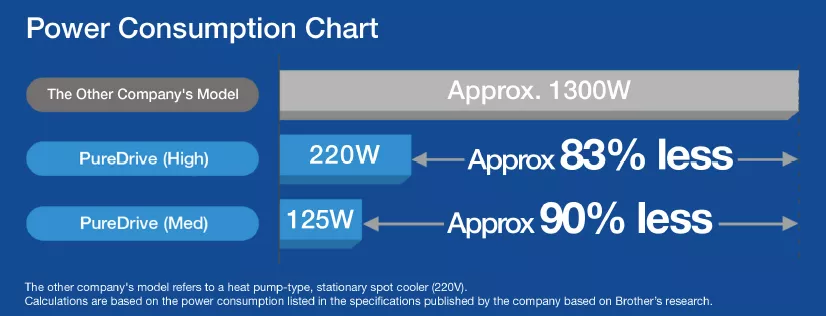

Energy & Cost Saving
Cost saving and carbon-neutral friendly.

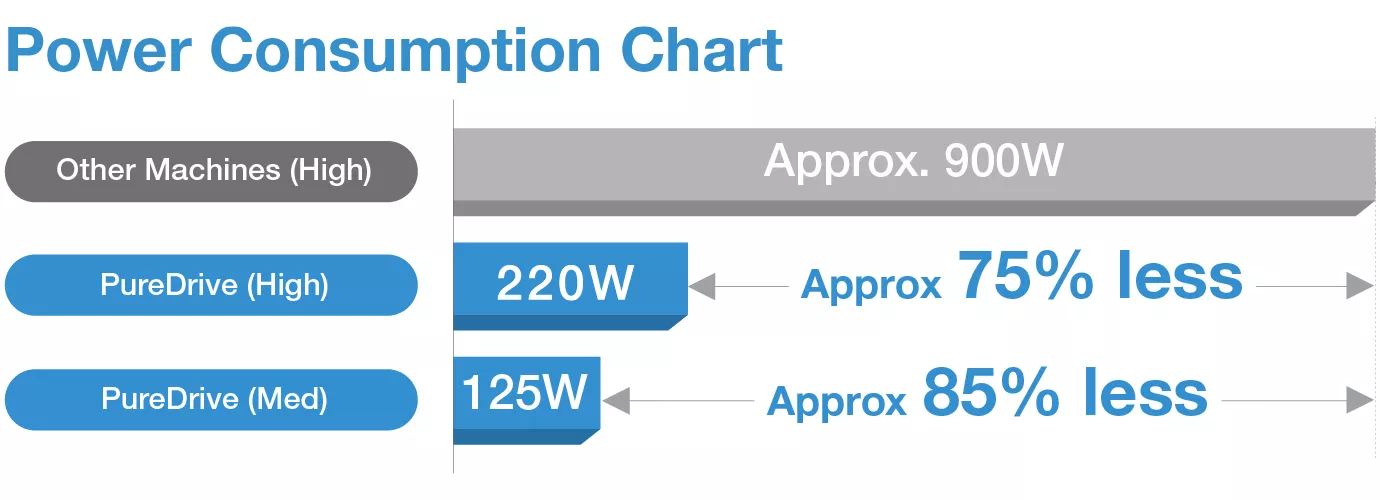

PureDrive consumes less electricity with water-based cooling than heat pump models.
Helping you cut electricity cost and CO2 emissions for a more carbon-neutral operation.
Powerful Cold Air
Powerful and cool airflow

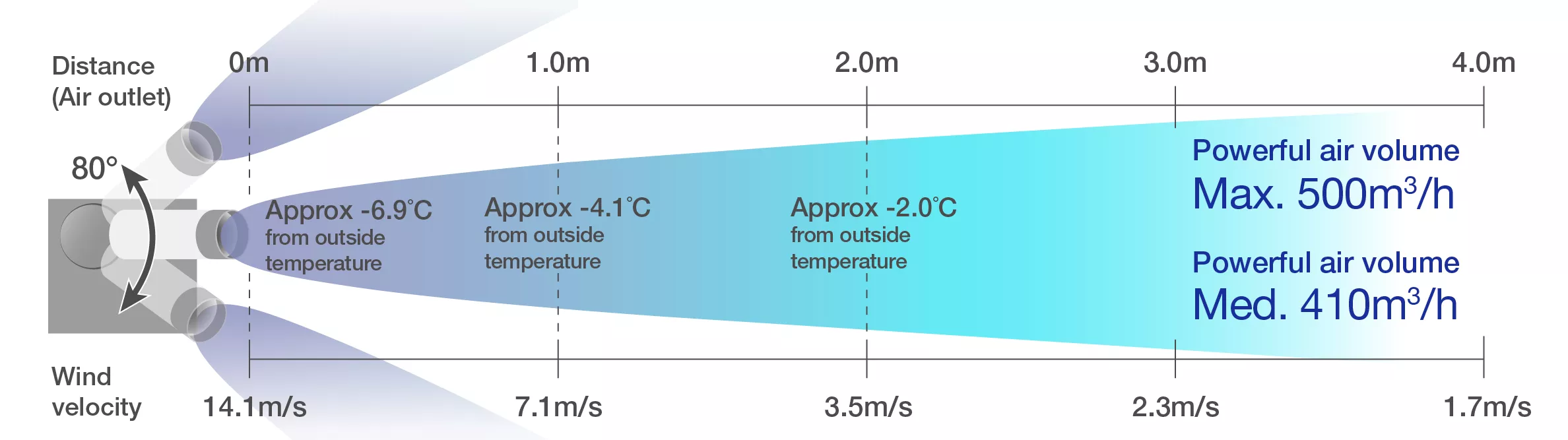

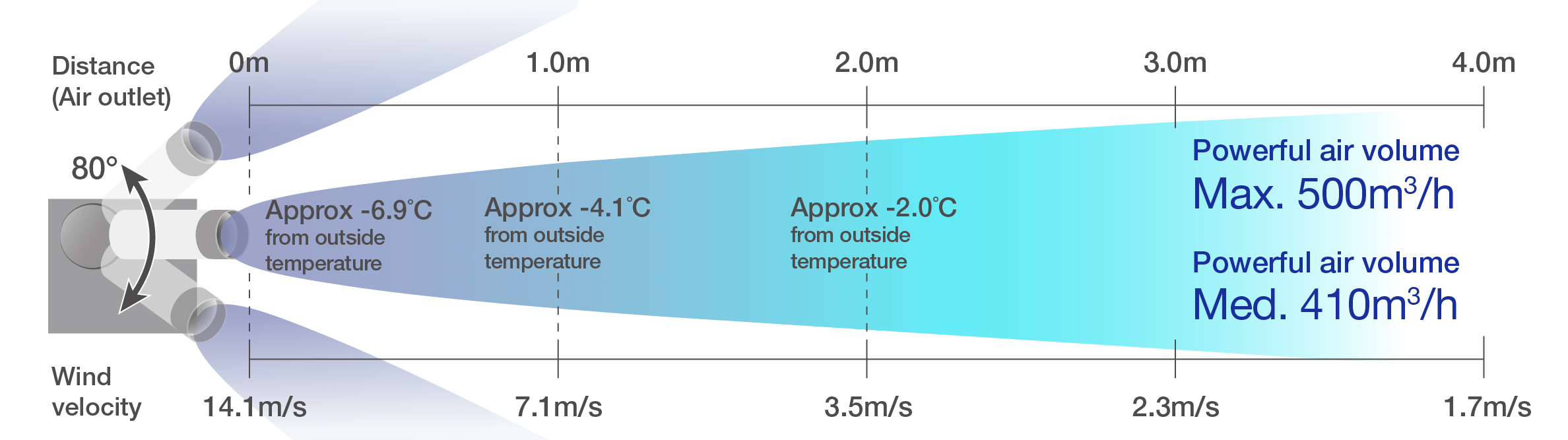

PureDrive delivers cool air with a temperature reduction of -4.1℃ from outside air to the actual point of intended use.
Easy-to-Use
Daily water maintenance and operation. Simpler than ever.
Easy Refilling
The new water tank is now 33% slimmer, making it easier to slide out and refill.
No more awkward lifting and splashing!
Self-Maintenance
The cooling unit’s water-absorbing pad is easy to replace.
Just slide it out and swap it with a clean one.
Intuitive Interface
A user-friendly interface with big buttons, and a simplified control panel.
Cycle through the 3 fan speeds with just a tap.
Applications across Industries

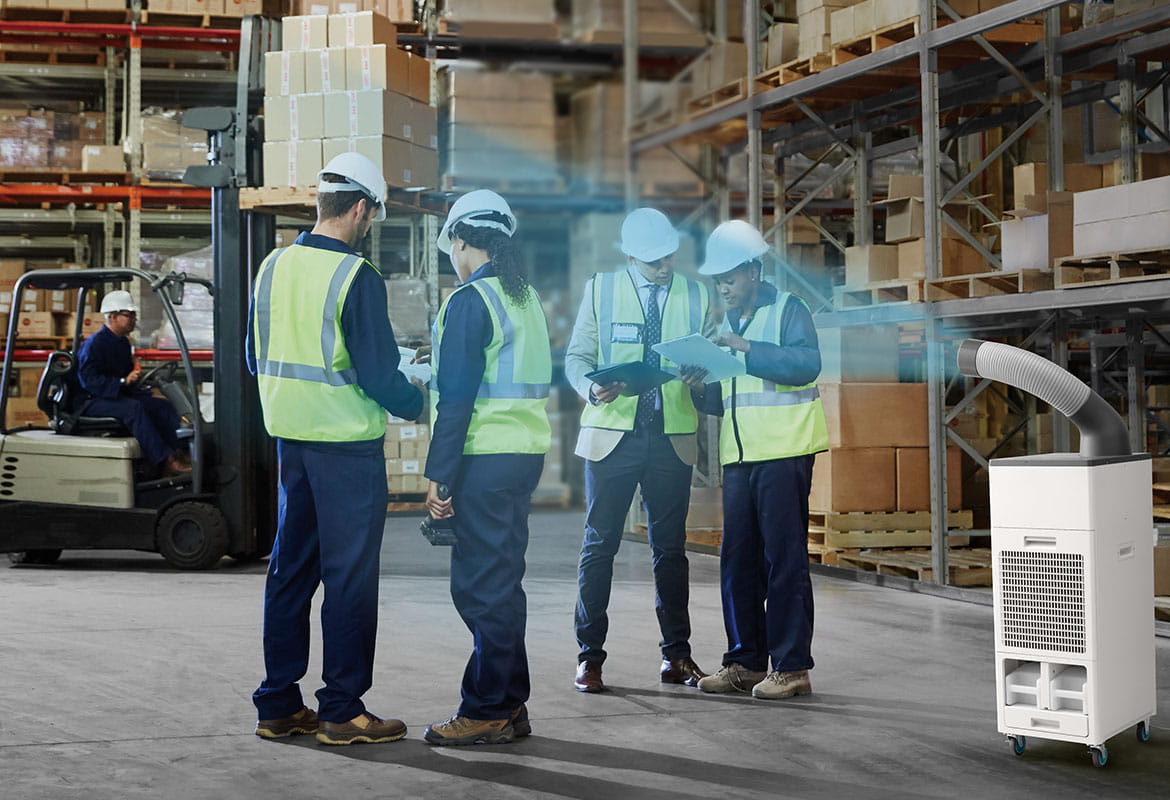

Logistics
Outdoor Activities for Kids

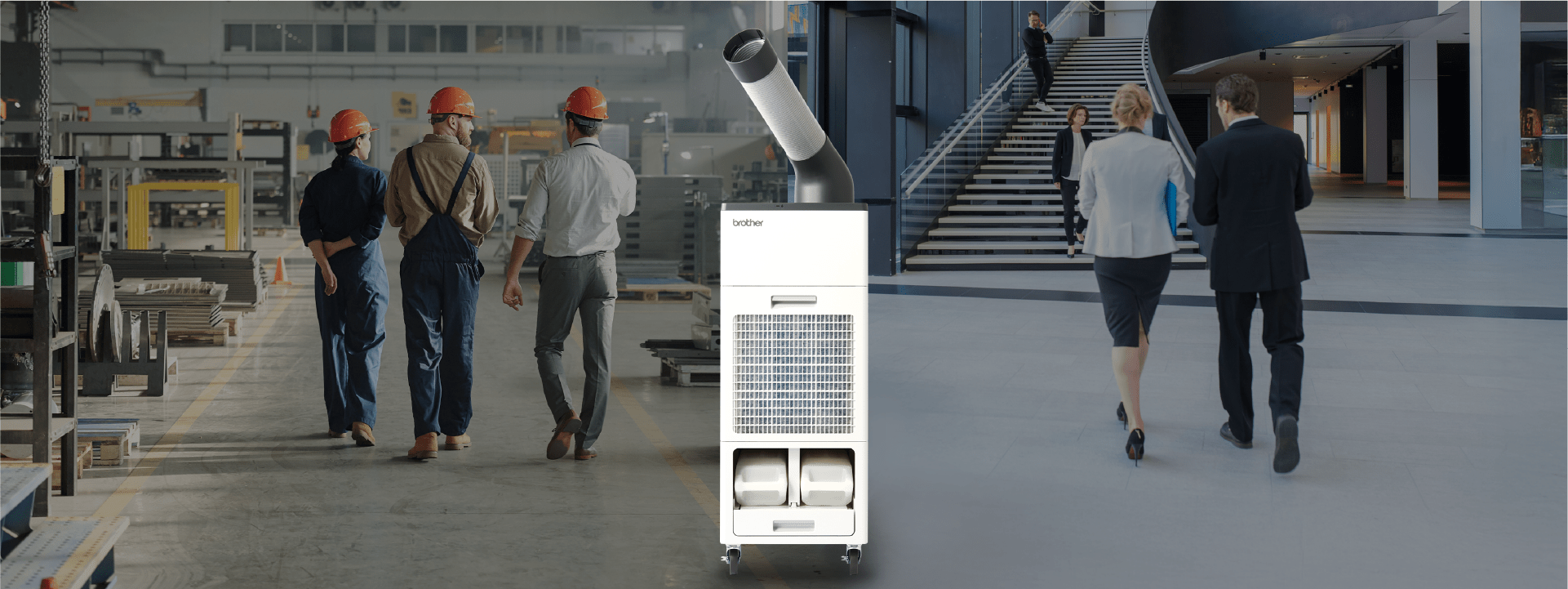

Manufacturing
Events
Public Facilities & Transport
F&B and Retail
Product Specification

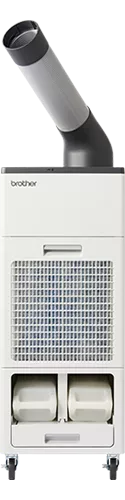

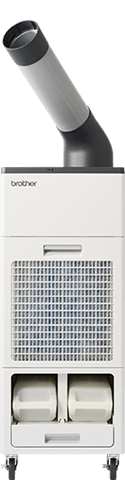

| Description | PureDrive PD-7100S - Stationary spot cooler with TwinAqua technology |
|---|---|
| Air Volume | High: 500m3/h, Medium: 410m3/h, Low: 300m3/h |
| Power | High: 220W, Medium: 125W, Low: 65W |
| Tank Capacity | 2 x 5 Litre (removable) |
| Dimensions | W 390 x D 430 x H 9900mm (excluding spot opening) |
| Weight | Approx. 32kg (with empty tank) |
| Swing Angle | 80 degree |
Consumables
 |
 |
 |
|
|---|---|---|---|
| Name | Cooling Element | Air Filter | Water Filter |
| Model Name | 7A-1001 | 7A-2001 | 7A-3001 |
| Description | The parts which makes the air cooler with the vaporization of the water. | It catches the dust before the air goes through the cooling element. | It catches the dust before the water goes through the cooling element. |
Download Spot Cooler Documentation
PureDrive PD-7100S User Guide
Document of Conformity
Quick Start Guide
PureDrive PD-7100S Product Safety Guide
PureDrive PD-7100S Datasheet
