Professional High Speed Desktop Scanner
- 100-sheet Automatic Document Feeder (ADF)
- 2-sided scanning up to 120ipm
- Optical character recognition (OCR)
- Optimise workflows with Kofax, NewSoft and ScanEssentials software
- Connect and scan using USB 3.0, USB host, Wi-Fi and network
- 10.9cm touchscreen
Information
Overview

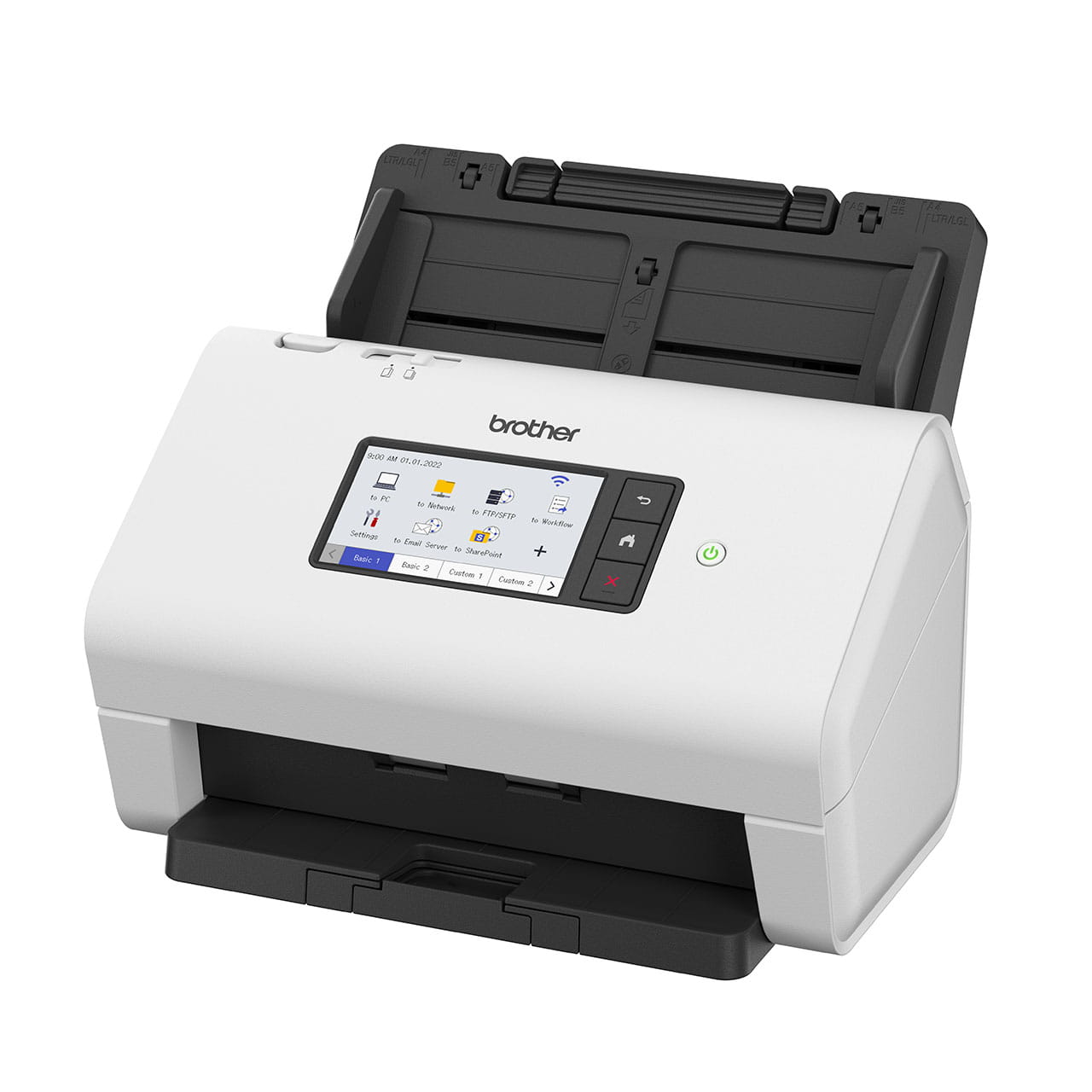

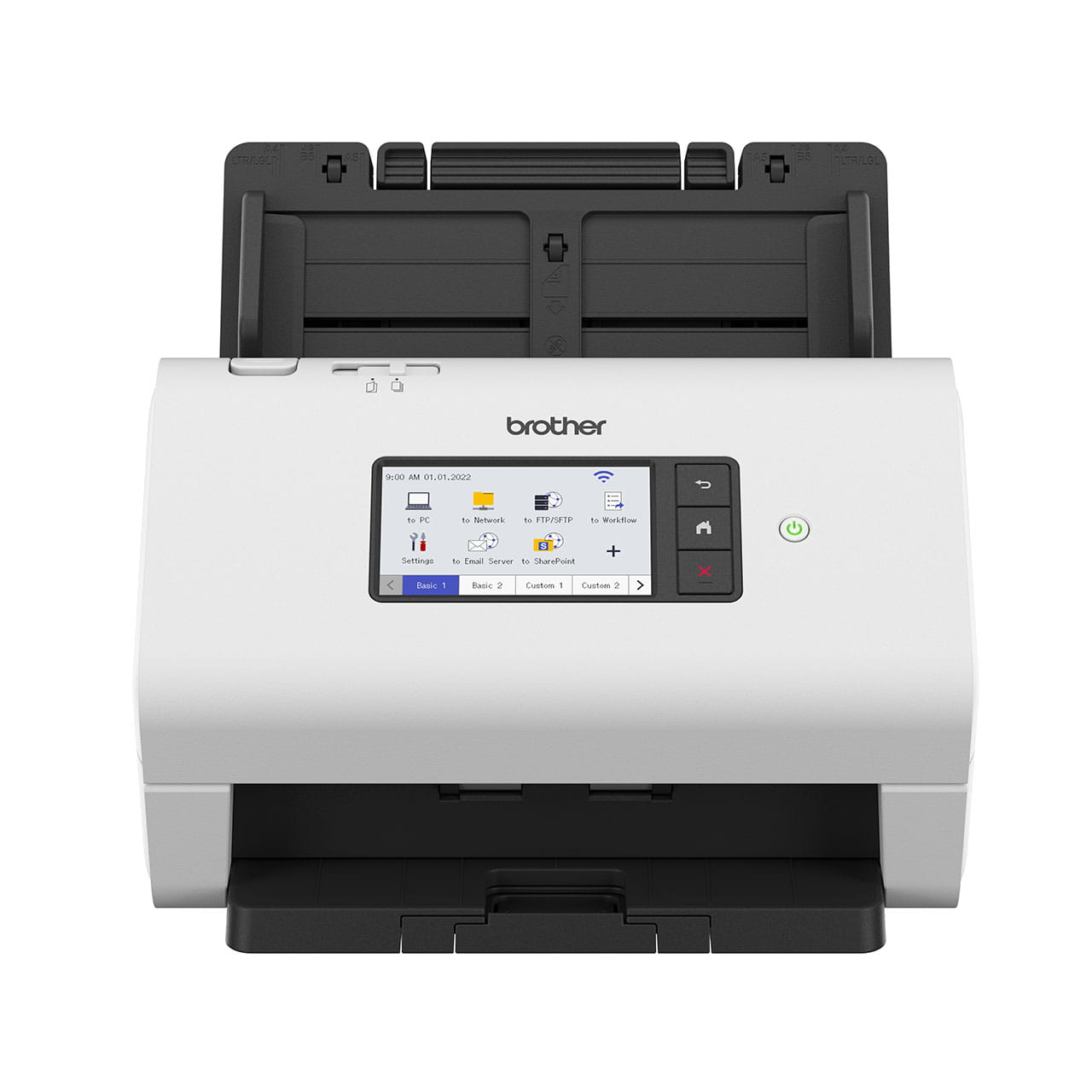

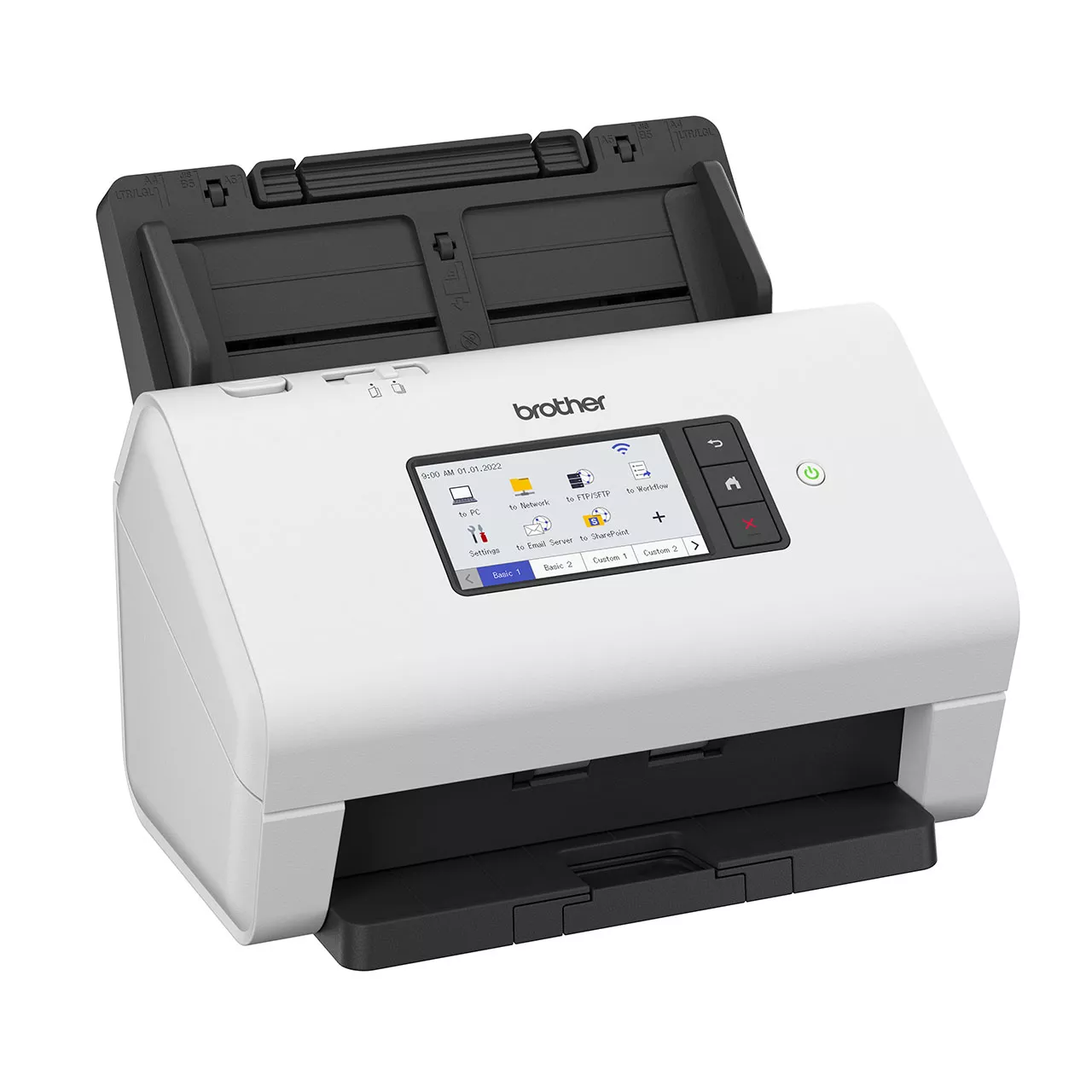

High-speed network desktop scanner ADS-4900W
Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimize the contents of your documents and easily collaborate with colleagues.
High-volume scanning
Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.
Ultrasonic Multifeed Sensor
The Ultrasonic Multifeed Sensor uses sound waves to identify potential misfeeds and alerts the scanner user to intervene. This reduces the risk of damaged documents and lost data.
Automatically route documents with barcodes
Reduce the labor-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.
Easy Maintenance
Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service center.
Specifications
Basic Specs
Scanning Speed
60 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
300 mm × 236 mm × 247 mm
Weight
3.37 kg
ADF (Automatic Document Feeder)
Up to 100 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity
1024MB
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
4.3 in. (109.2 mm) TFT colour LCD screen
Operation
Power Source
AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 34W
Power Consumption - Ready
Approx. 7.7W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
