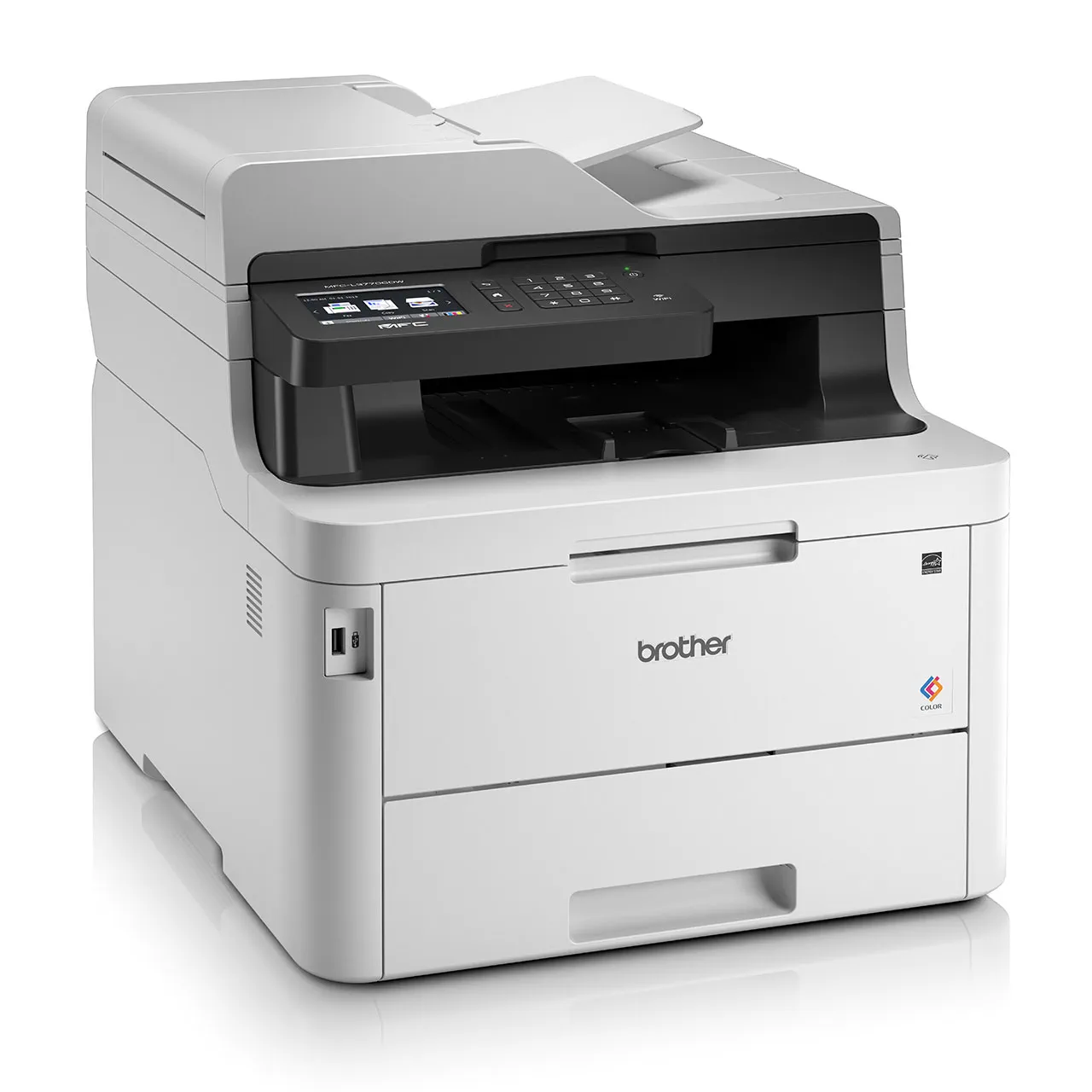

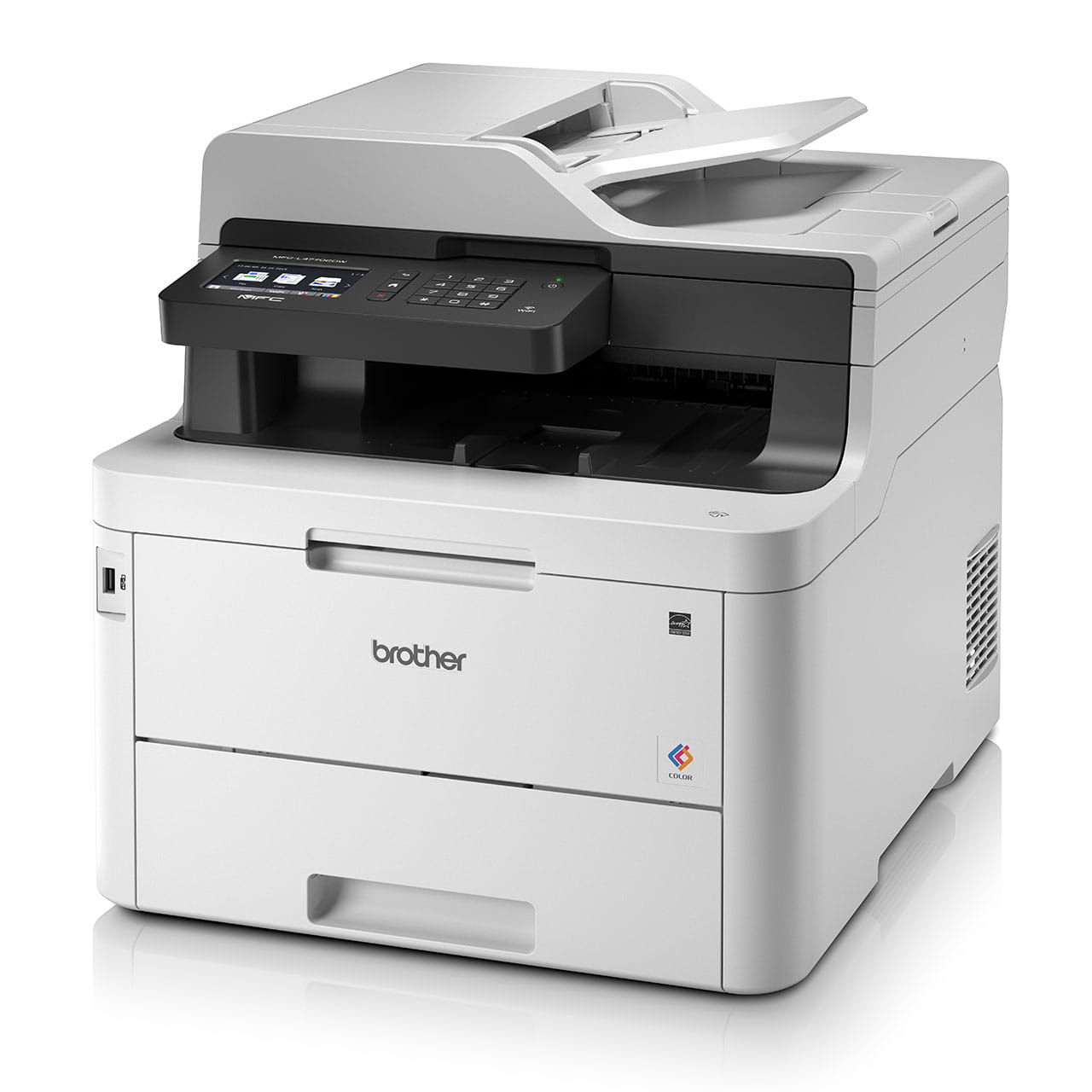

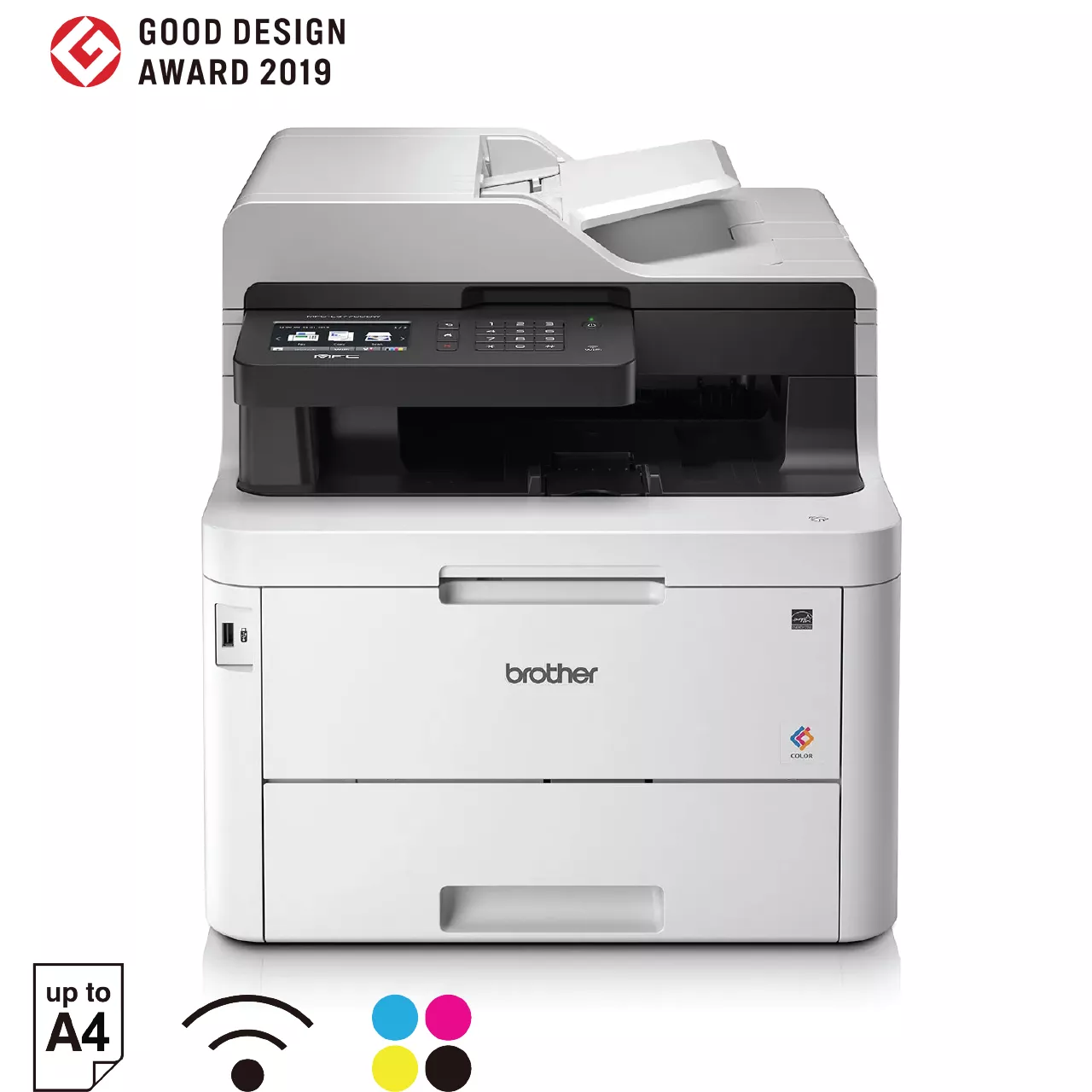

MFC-L3770CDW Laser Printer
Discontinued Product
Discontinued Product
Discontinued Product
Color LED Multi-Function Center with Wireless & Network Connectivity, Automatic 2-sided Color Print, Dual CIS ADF - Multi-page Duplex Scan, Copy, Fax, High Productivity with Fast Print Speeds & Multi-tasking, Wi-Fi Direct, Mobile & USB Print, Low Cost Quality Print - Affordable Toner
- A4 print speed up to 24 ppm (Black/Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, NFC connectivity, USB 2.0
- Auto 2-sided (Duplex) printing, 50 sheets dual CIS Auto-Document Feeder (ADF), 3.7” Colour LCD touchscreen
- Full capacity toner included. Yield up to 1000/1000 pages (black/colour)*
- Compatible with Brother iPrint&Scan mobile app
- 1 year standard warranty
Information
Overview
- Fast color print speed: up to 24ppm
- Fast scan speed: up to 27ipm
- 50-sheet Dual CIS Auto Document Feeder
- 30-sheet manual feed slot
- 250-sheet default paper tray
- Multitasking capabilities
- 3.7” LCD touchscreen
- Automatic 2-sided printing
- Integrated NFC and USB reader
- Wireless and mobile connectivity
Remarkable Productivity
Fast Print and Scan Speeds
Boost your productivity with fast colour print speeds of up to 24ppm and scan speeds of up to 27ipm.
Seamless Multi-page Scanning
The Dual CIS Auto Document Feeder scans 2-sided documents in a single pass, cutting scan times by half.
Built for Multi-tasking
Equipped with multifunction capabilities, skip ahead to the next task even before the completion of your current print job.
Comprehensive Paper Handling
Handle a greater variety of papers up to 163gsm with the 30-sheet manual feed slot, and efficiently handle high print volumes with the 250-sheet default paper tray.
Shortcut Your Everyday Tasks
Streamline your workflow with easy-to-program shortcuts on the user-friendly LCD touchscreen.
Optimise Cost-Savings
Cut Your Paper Waste by 50%
Reduce your paper wastage and expenses with automatic duplex printing.
Lower Your Running Costs
Enjoy lower cost-per-page with high-yield toner cartridges, and use less toner while producing brilliant printouts with Toner Save Mode.
Enhanced Connectivity
Wireless and Wired Sharing
Share your Brother laser printer with multiple users on your network via its built-in Wi-Fi and Ethernet. With the integrated NFC reader, users can gain wireless access in a simple tap.
Print from Your Mobile
Connect your mobile devices and start printing and scanning via Brother iPrint&Scan and other compatible mobile applications.
USB Direct Print
Insert your USB flash drive into the integrated USB reader for fast prints and scans.
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Color LED Printer
Product Dimensions (Width X Depth X Height)
410 mm × 509 mm × 414 mm
Weight
24.7 kg
Print Speed
Up to 24/25 ppm (A4/LTR)
Paper Size
A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal
Maximum Paper Capacity
Max. 250 sheets (80 gsm)
Resolution
600 x 600 dpi, 2,400 dpi (600 x 2400) quality
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Max. 250 sheets, 80 gsm plain paper
Multi-purpose Tray - Paper Type
60 to 163g/m2
Multi-purpose Tray - Maximum Paper Capacity
Max. 30 sheets
Automatic Document Feeder (ADF) Maximum Paper Capacity
Max 50 pages
Paper Output
Max. 150 sheets Face Down
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Stacks or Sorts up to 99 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Max. 600 dpi × 600 dpi
2-Sided (Duplex) - Paper Size
A4
Scan
Resolution - Interpolated
Max. 19,200 dpi x 19,200 dpi
Resolution - Scanner Glass
Max. 1,200 dpi × 2,400 dpi (optical)
Resolution - Automatic Document Feeder (ADF)
Max 1,200 x 600 dpi (optical)
Fax
Modem Speed
33,600 bps
Memory Transmission
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n, IEEE 802.11g/n (Wi-Fi Direct), NFC
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
3.7" TFT colour touchscreen LCD
Memory Capacity
512 MB
Operation
Power Source
AC 220 to 240 V 50/60 Hz
Power Consumption - Ready
Approx. 75W
Power Consumption - Sleep
Approx. 10.1W
Power Consumption - Power Off
Approx. 0.04 W
Noise Level
Max. 47 dB(A)
Supported Operating Systems
Supported OS
Windows® Server 2008 (Network only), Server 2008 R2 (Network only), 7 SP1, 8, 8.1, Server 2012 (Network only), Server 2012 R2 (Network only), 10, Server 2016 (Network only)
Mac OS v10.11.6/10.12.x/10.13.x
CUPS, LPD/LPRng (x86/x64 environment)
