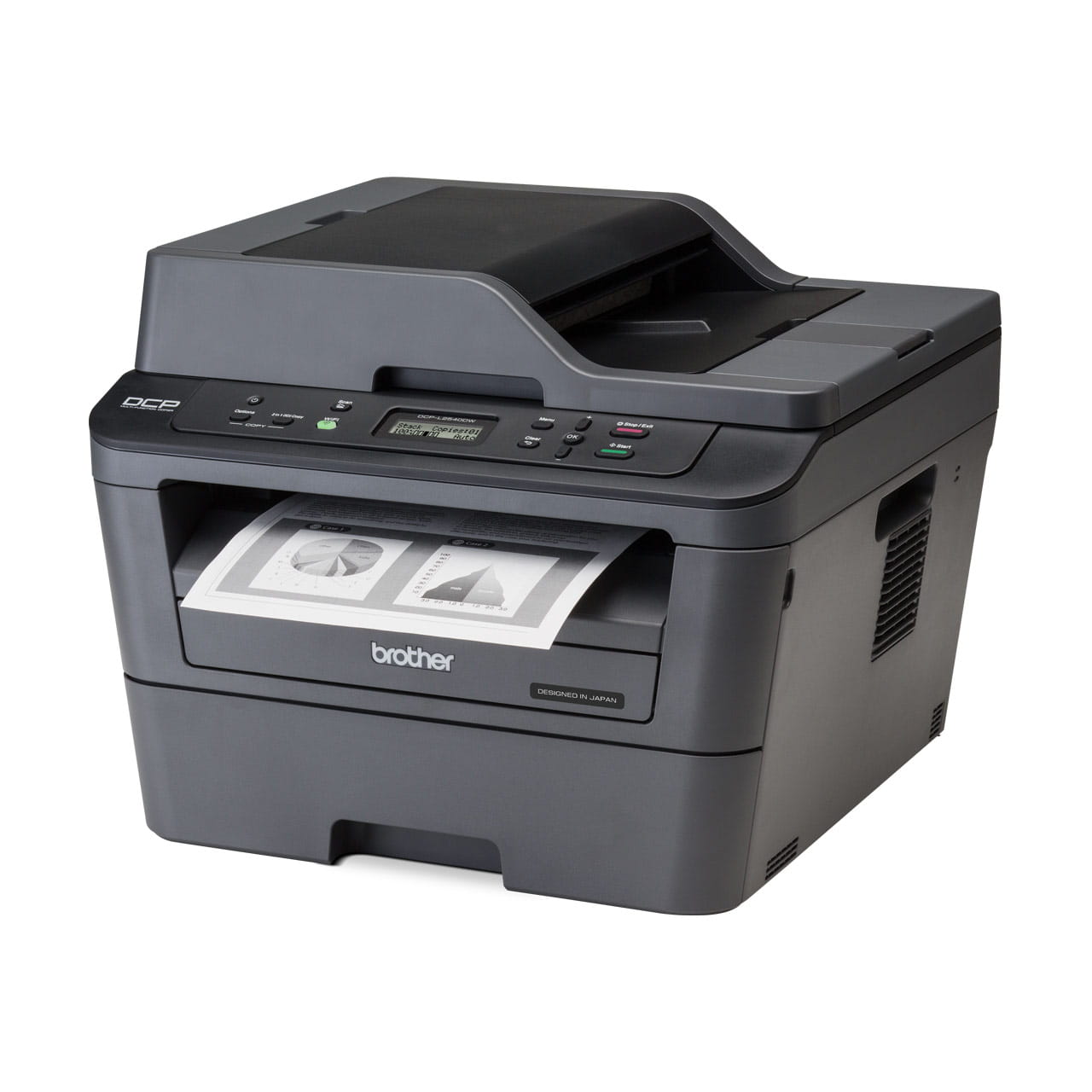

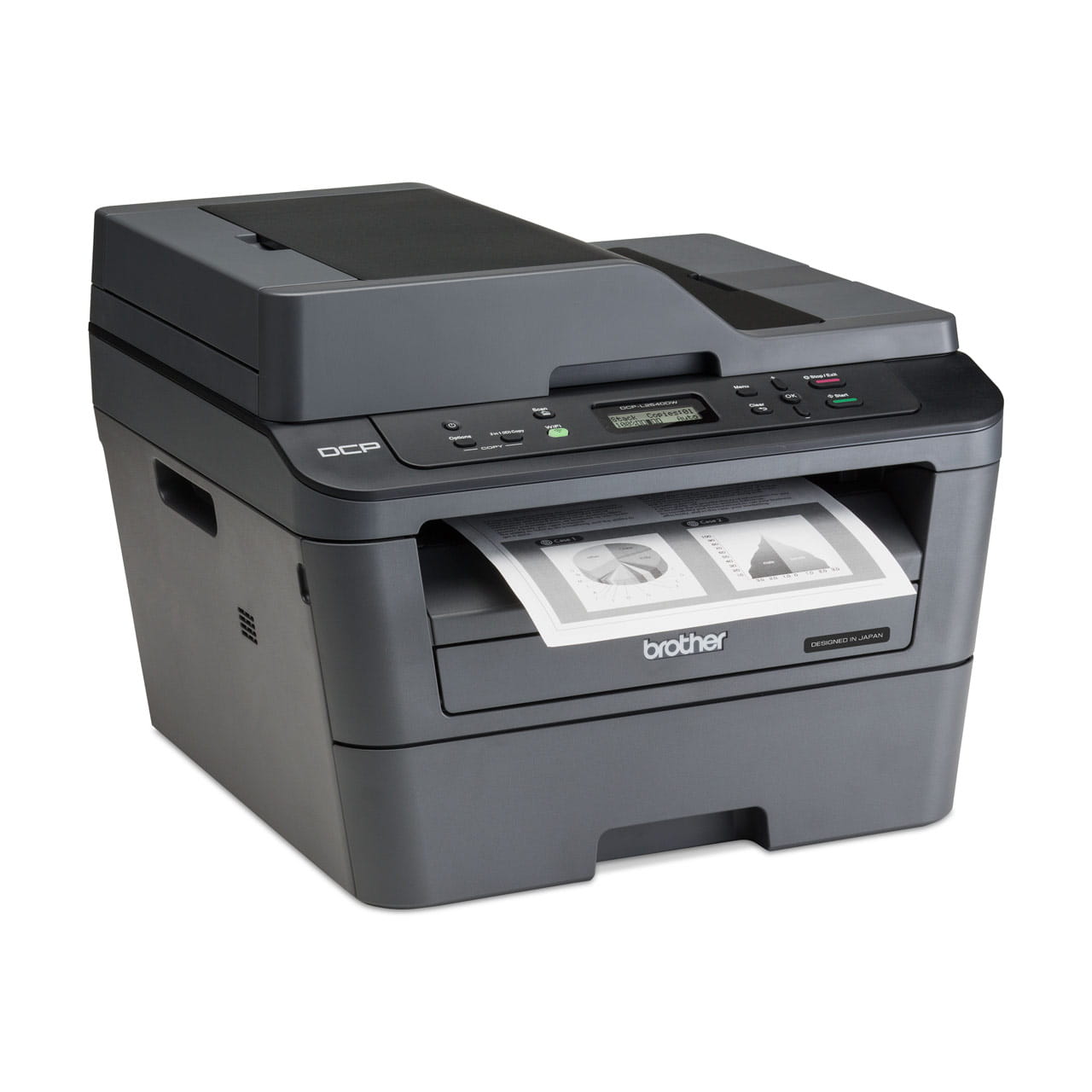

3-in-1 Monochrome Laser Multi-Function Center with Automatic 2-sided Printing and Wireless Networking
13,950.00 PHP
- A4 print speed up to 30 ppm (Black)
- WiFi, WIRED, AirPrint, Mopria, WiFi Direct, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 35 sheets Auto-Document Feeder (ADF), 2-line LCD
- Full capacity toner included. Yield up to 2600 pages (black)*
- Compatible with Brother iPrint&Scan, Airprint and mopria
- 1 year standard warranty, 2 year extended warranty
Information
Overview
Save Paper and Time with Automatic 2-Sided Print
Print 2-sided pages without manually feeding the paper for backto-back print jobs.
250-Sheet Dust-Free Paper Tray
Protect papers from dust with an enclosed paper tray that holds up to 250-sheet of papers.
Up to 30ppm High Print Speed
Get your printing done in a flash at a fast laser printing speed of up to 30ppm.
Toner Save Mode
Toner Save Mode allows you to reduce printing costs due to lower toner usage when printing draft-quality documents.
Network Adminstration Tools
Eliminate excessive downtime with Brother networking administration tools (BRAdmin Professional software) which provides status monitoring and configuration capabilities.
CONNECTIVITY
Connect Wirelessly
Connect your mobile device to your machine effortlessly with one-touch wireless set-up. Simply connect your machine to any WiFi compatible mobile
device without the need for a router or hotspot, and you are ready to print from or scan to your mobile device directly. WiFi direct makes it easy to print emails, webpages and documents.
Mobile Print
Use the iPrint&Scan app, Apple Airprint or Google Cloud Print to print and scan straight from your iPhone, iPad, Android™ device or Windows® Mobile
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
409 mm × 398 mm × 316.5 mm
Weight
11.2 kg
Print Speed
Up to 30ppm
Paper Type
Paper Tray (Standard) : Plain paper, thin paper, recycled paper
Manual Feed Slot : Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick
Paper Size
Paper Tray (Standard) : A4, Letter, A5, A5 (Long Edge), A6, Executive
Manual Feed Slot : Width: 76.2 to 215.9 mm | Length: 127 to 355.6 mm
Maximum Paper Capacity
Paper Tray (Standard) : Up to 250 sheets of 80 g/m2 Plain Paper
Manual Feed Slot : One sheet at a time
Warranty
1 year
Resolution
600 x 600 dpi, HQ1200 (2400 x 600 dpi) quality
2-Sided (Duplex) - Printing Paper Type
Plain paper, thin paper, recycled paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick
Manual Feed Slot - Maximum Paper Capacity
One sheet at a time
Paper Output
Up to 100 Sheets of 80 g/m2 Plain Paper (face-down delivery to the face-down output paper tray)
Copy
Multiple Copies
Stacks or Sorts up to 99 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 × 19200 dpi
Resolution - Scanner Glass
Max. 600 x 2400 dpi
Resolution - Automatic Document Feeder (ADF)
Max. 600 x 600 dpi
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
16 characters x 2 lines LCD
Memory Capacity
32 MB
Operation
Power Source
AC 220 to 240 V 50/60 Hz
Power Consumption - Ready
Approx. 60 W at 23 °C
Power Consumption - Sleep
Approx. 6.6 W
Power Consumption - Power Off
Approx. 0.08 W
Noise Level
LpAm = 50 dB (A)
Supported Operating Systems
Supported OS
Window 8.1/8/7, Windows Vista, Windows XP Home/Professional/Professional x64, Windows Server 2012(Network Only)/2012 R2(Network Only)/2008(Network only)/2008 R2(Network only)/2003 x64 Edition/2003(Network only)
Mac OS X v10.9.x, 10.8.x, 10.7.5 (Download only)
