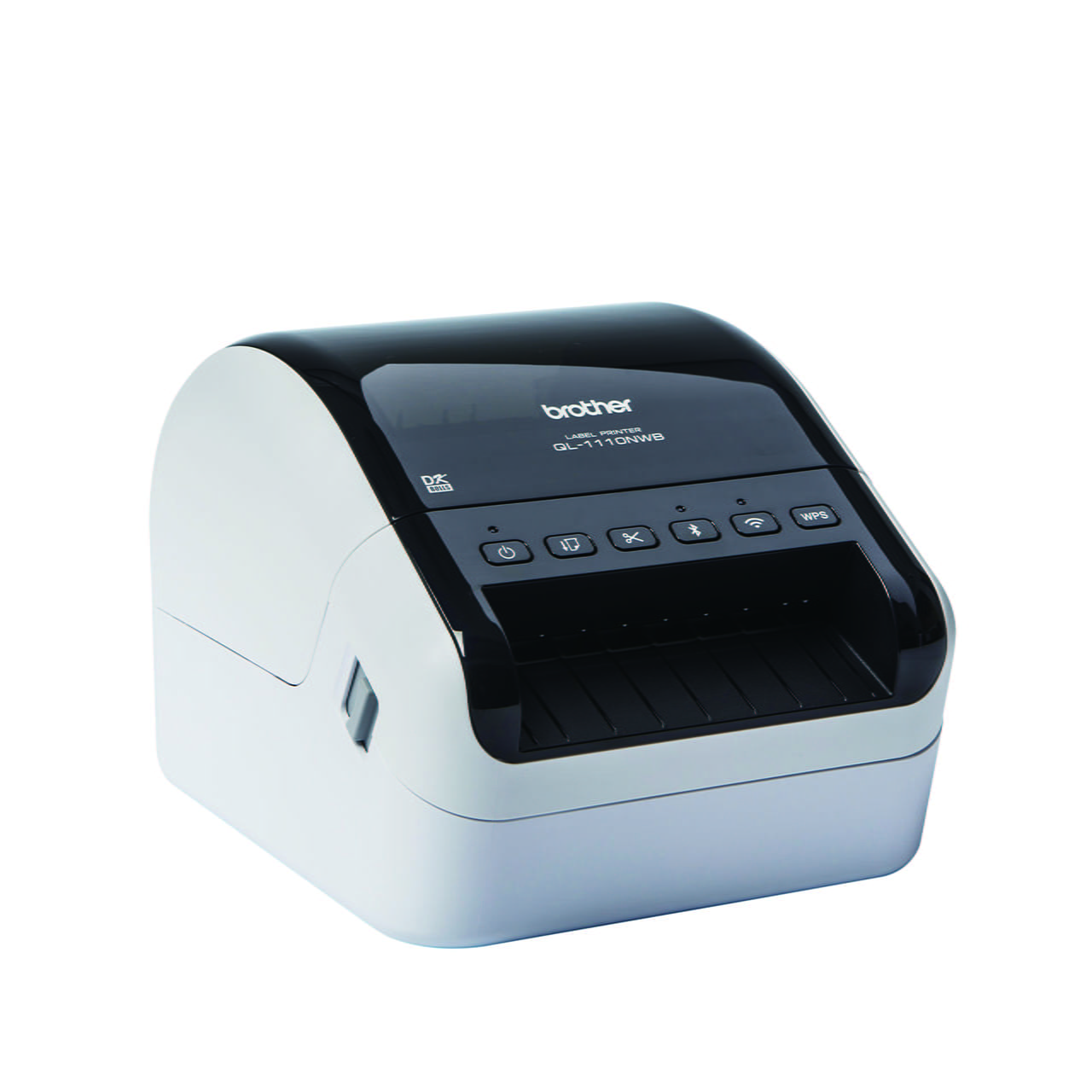

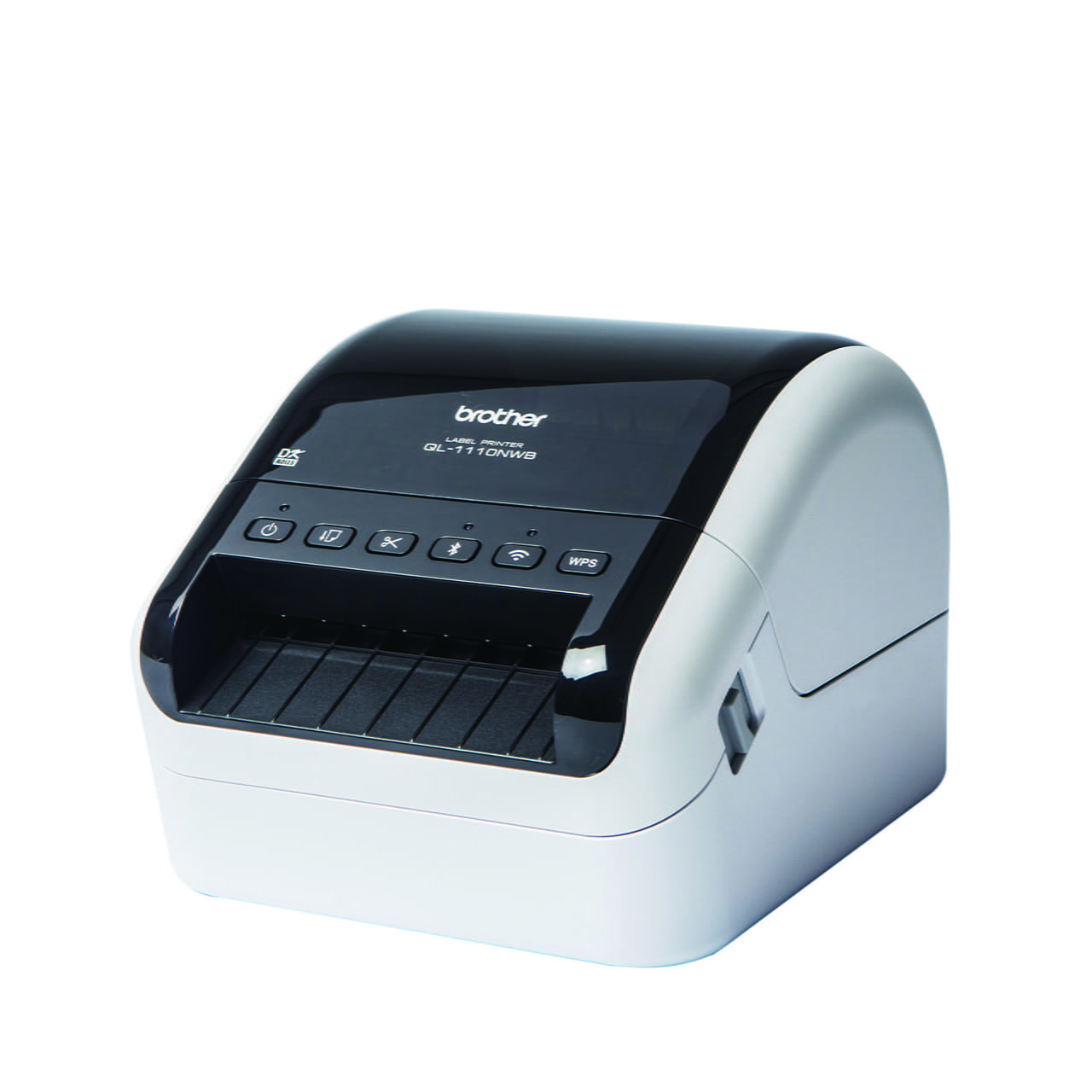

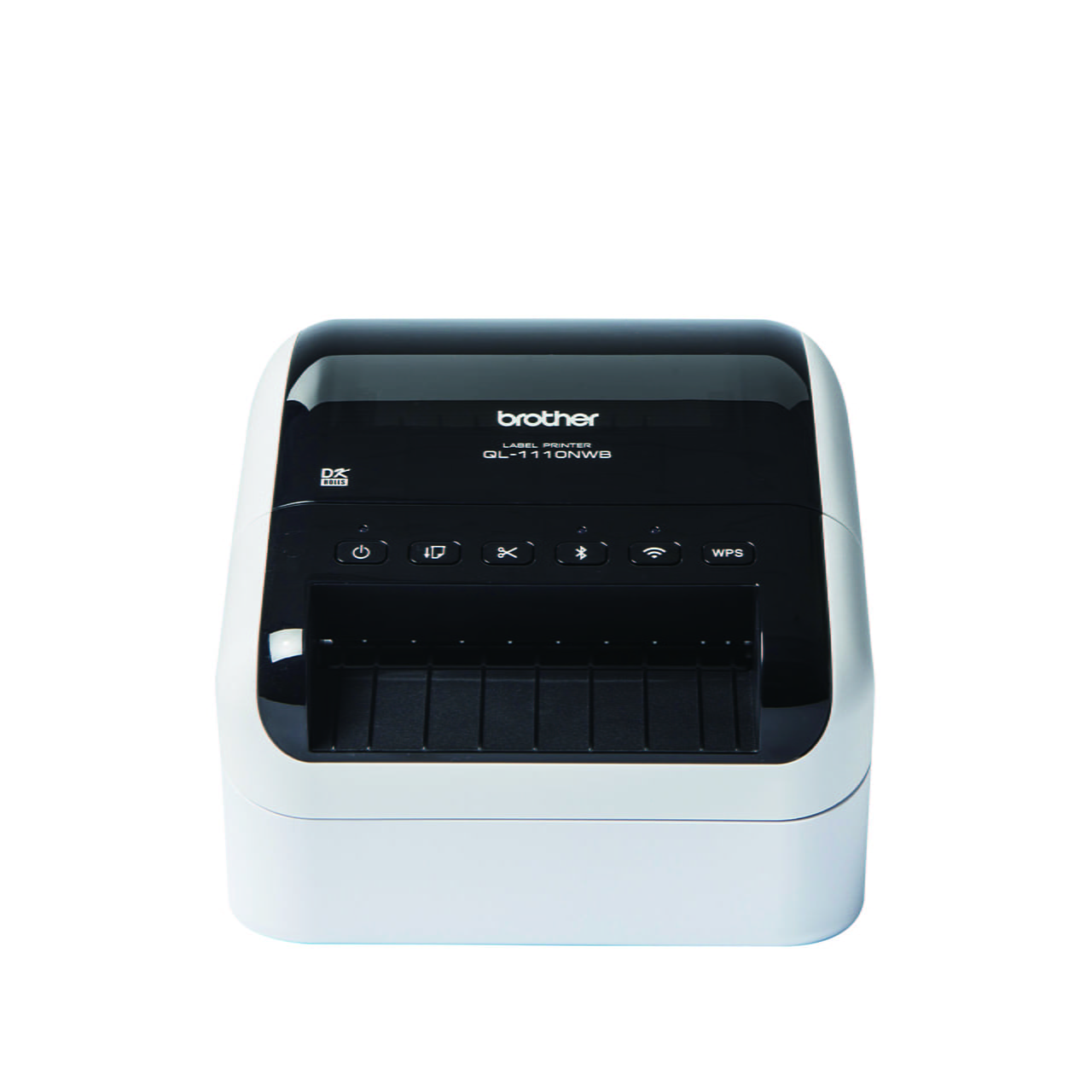

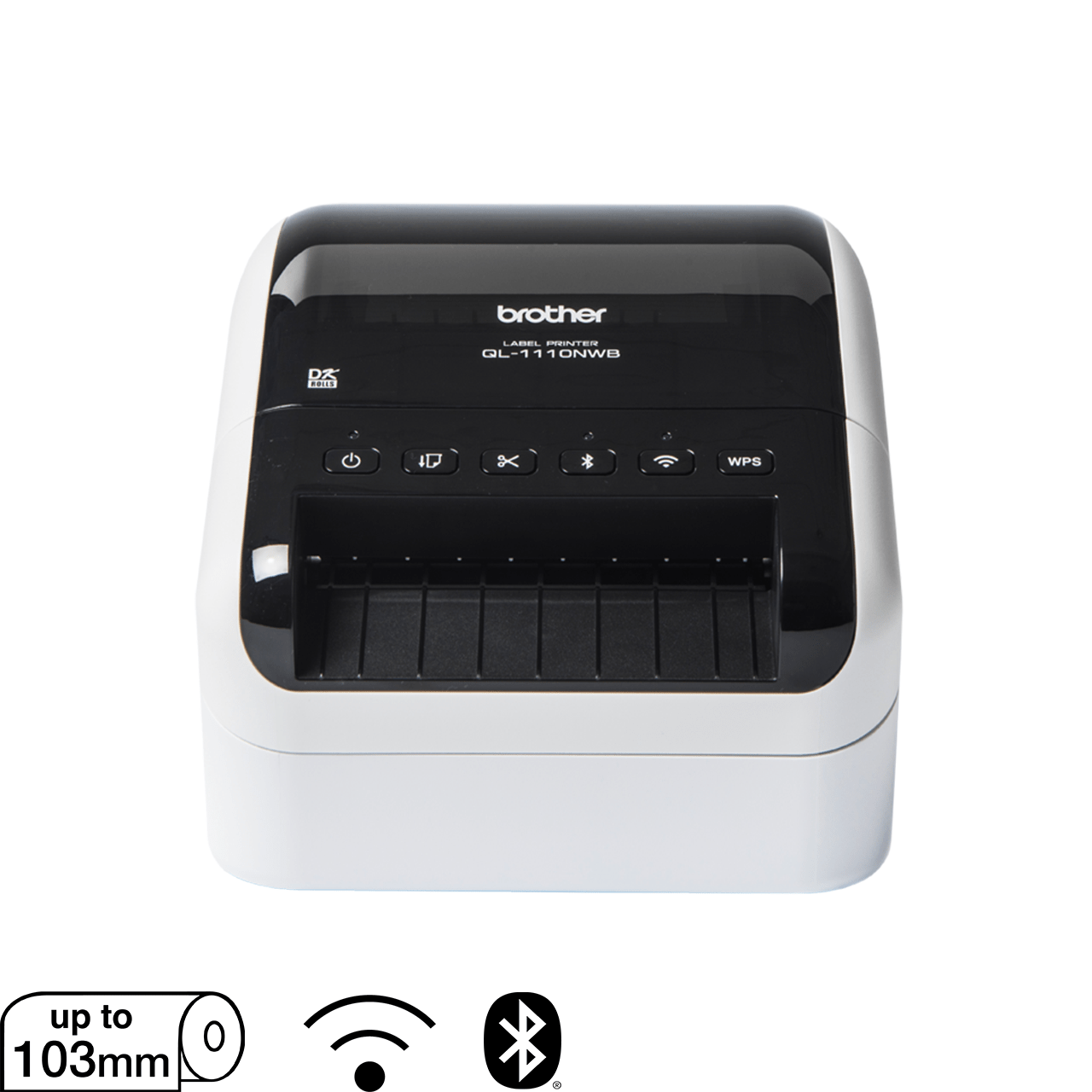

Professional Shipping Label Printer
- Print up to 103mm DK rolls width
- USB, USB host, Bluetooth, Wired LAN and WiFi connection
- Auto cut function
- Auto Crop tool for shipping labels
- Fast print speed of up to 110mm per second
- Template printing through USB host
Information
Overview

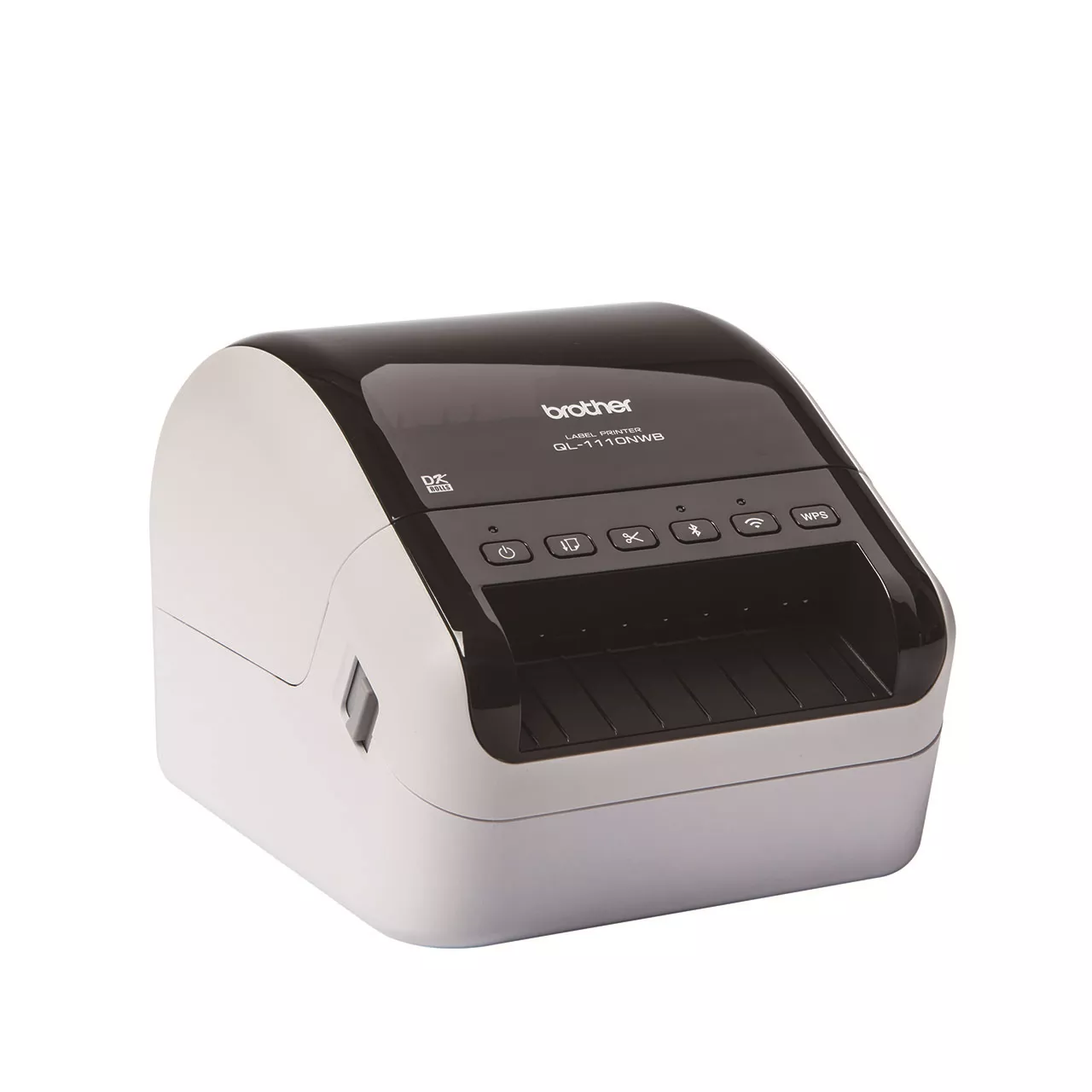

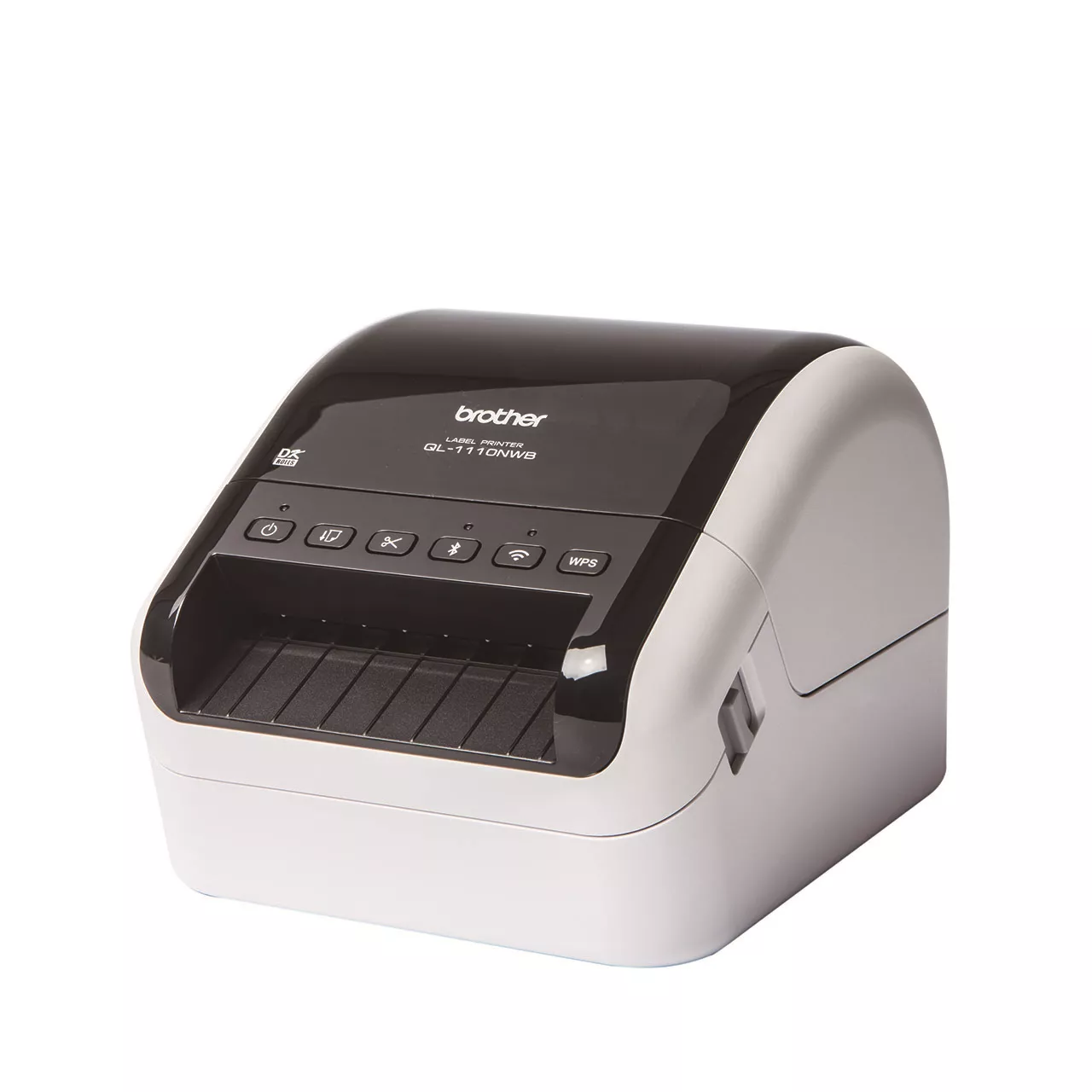

Wide format shipping/barcode label printer

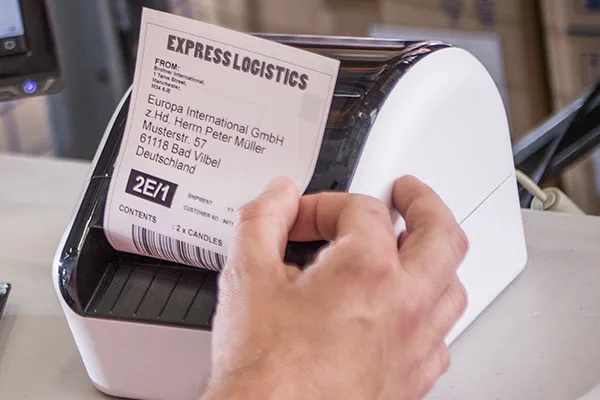

The QL-1110NWB is the ideal label printer for mail rooms, warehouses, and anyone who needs to print high quality shipping labels containing barcodes, images and text.
4 inch (101.6mm) print width
To ensure maximum compatibility with third party shipping label printing software, the QL-1110NWB has a print width of 4" (101.6mm) - the specification required by the majority of parcel carriers.
Includes many connectivity options as standard
PC and Mac users can connect via USB, wired ethernet or by Wi-Fi. Or easily connect your mobile device using Bluetooth. For full compatibility with Apple devices, the QL-1110NWB is MFi certified, and also includes AirPrint.
Built-in memory to store label templates

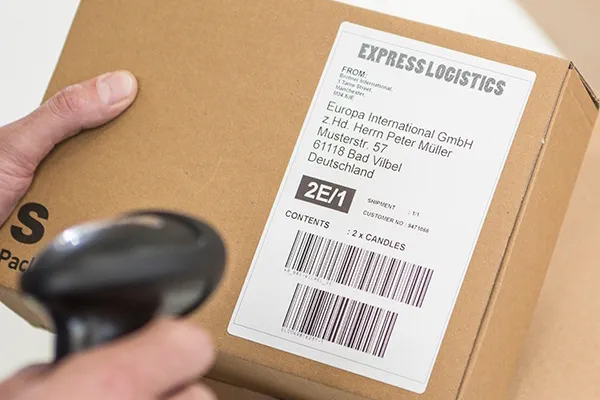

Connect directly to specialist equipment using the USB host port - no PC required. These devices can then send commands to select the required label template stored in the printer memory, send the required data to merge onto the label, then issue the command to print. One example is to scan barcodes containing the commands to select and print the built-in templates, to print copies of barcodes

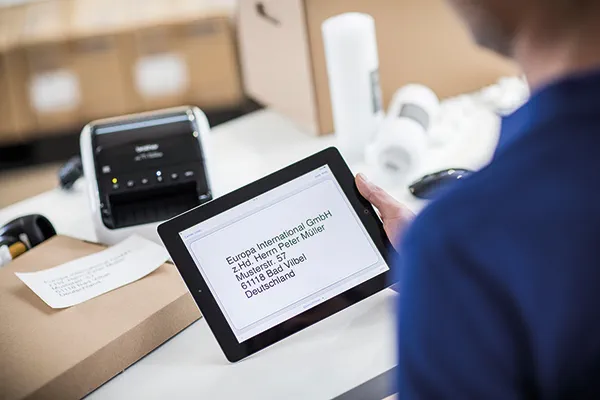

Print from PC, Mac, iOS and Android devices

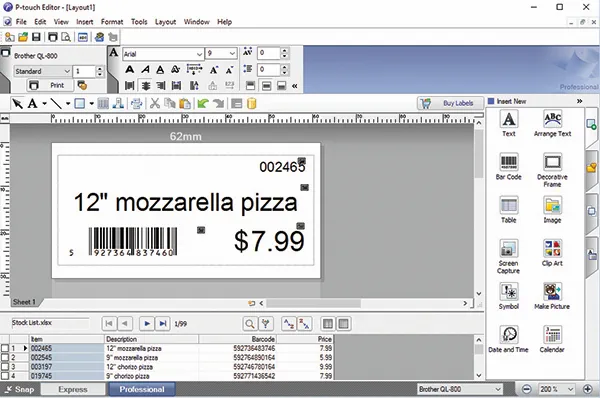

The free P-touch Editor label design software for PC and Mac lets you add text, images, barcodes and frames to your labels. Or use the free iPrint & Label app for iOS and Android to create and wirelessly print labels from your mobile devices.
Microsoft Office and database printing
The P-touch editor add-in for Microsoft Office (Windows only) allows you to select and print data directly from Word, Excel and Outlook. From Microsoft Word, highlight an address and click the add-in, in the toolbar, to print this on a label. Highlight cells in Excel and again click the add-in. For Outlook, select the contact with the address you require to print this label.
Easily add label printing into your existing systems
Brother provides free software development kits for Windows, iOS and Android for system developers to easily incorporate the QL-1110NWB into legacy software.
Large range of labels for any application
Brother DK rolls slot-in easily for fast label changes. Several types are available:
- Pre-sized die-cut adhesive labels in paper and plastic film material.
- Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 3 metres).
- Non-adhesive card ideal for receipts and name badges.
- Removable adhesive for repositionable labels.
Built-in memory to store label templates
Connect directly to specialist equipment using the USB host port - no PC required. These devices can then send commands to select the required label template stored in the printer memory, send the required data to merge onto the label, then issue the command to print. One example is to scan barcodes containing the commands to select and print the built-in templates, to print copies of barcodes
Specifications
Basic Specs
Display Type
LED: green, red and orange
Media Type
DK roll
Available Tape Widths
12 - 103mm
Product Dimensions (Width X Depth X Height)
222 × 170 × 151
Print Speed
Max 110mm/sec.
69 standard address labels / min
Resolution
300 dpi / 1296 dots
Barcode
Yes
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN IEEE 802.11b/g/n, Bluetooth
Media
Maximum Roll Width
12 - 103.6mm
Printing Width
Up to 101.6 mm
Functions
Cutter
Auto
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
7.8MB
255 templates
Power
Power Source
220-240V AC internal power supply
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
