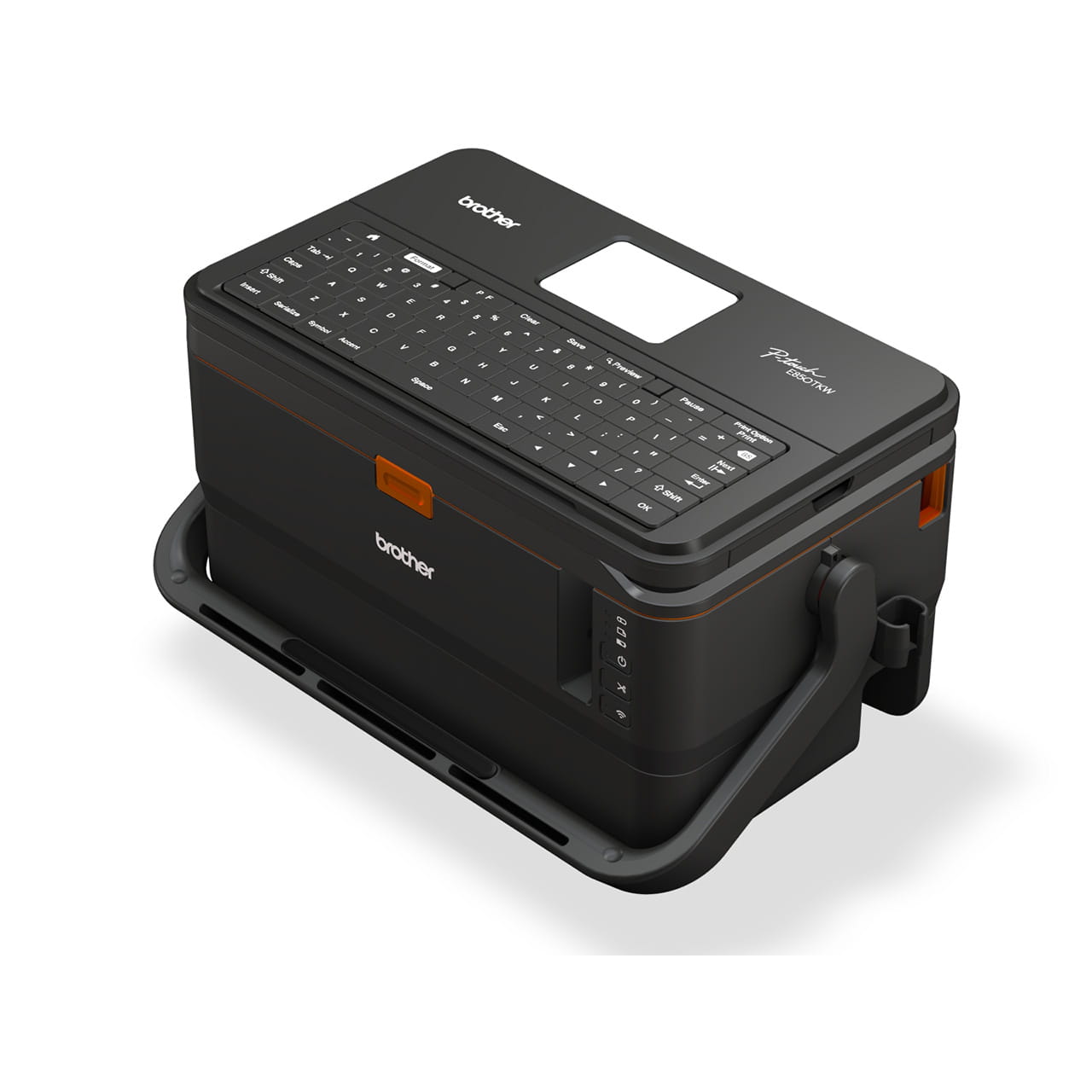

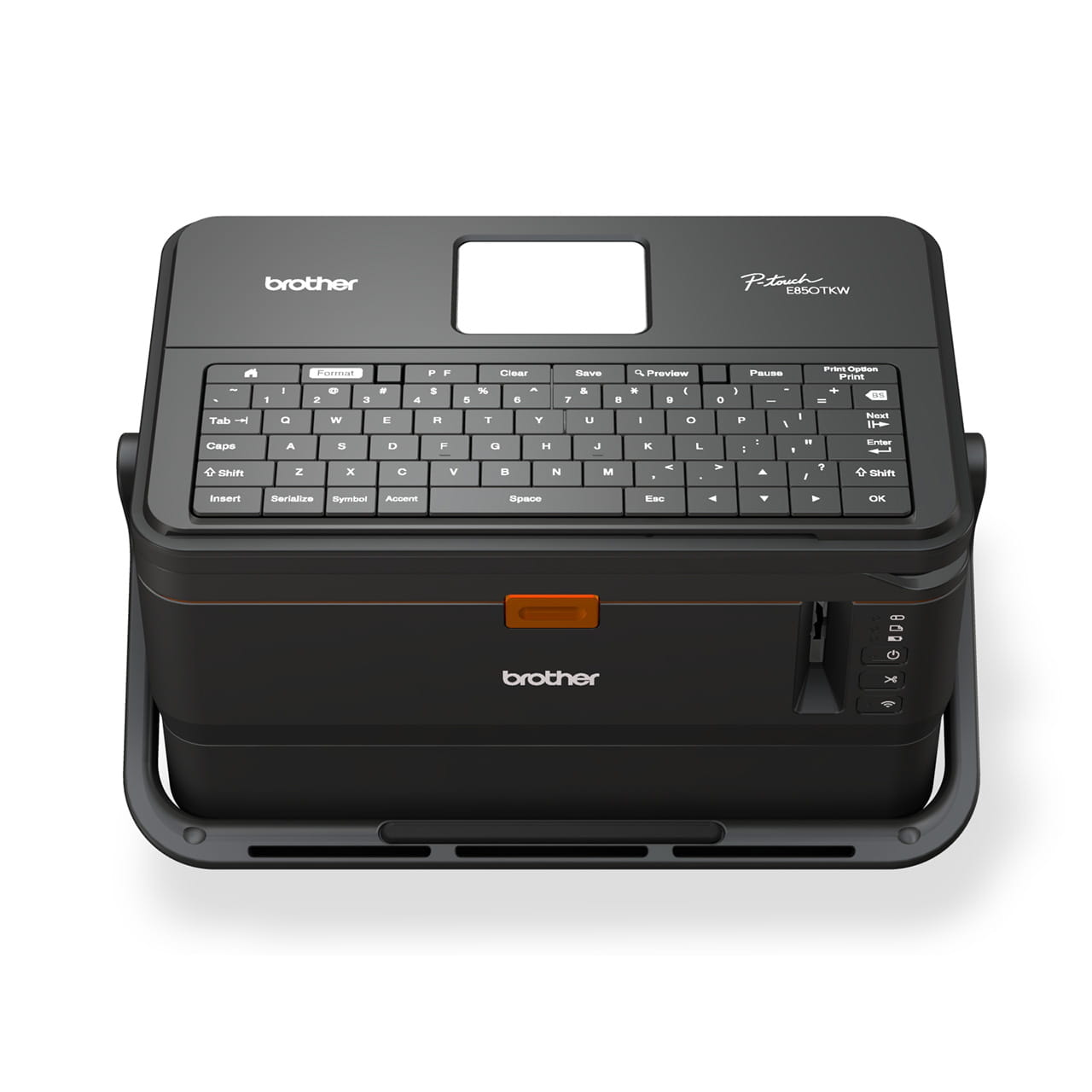

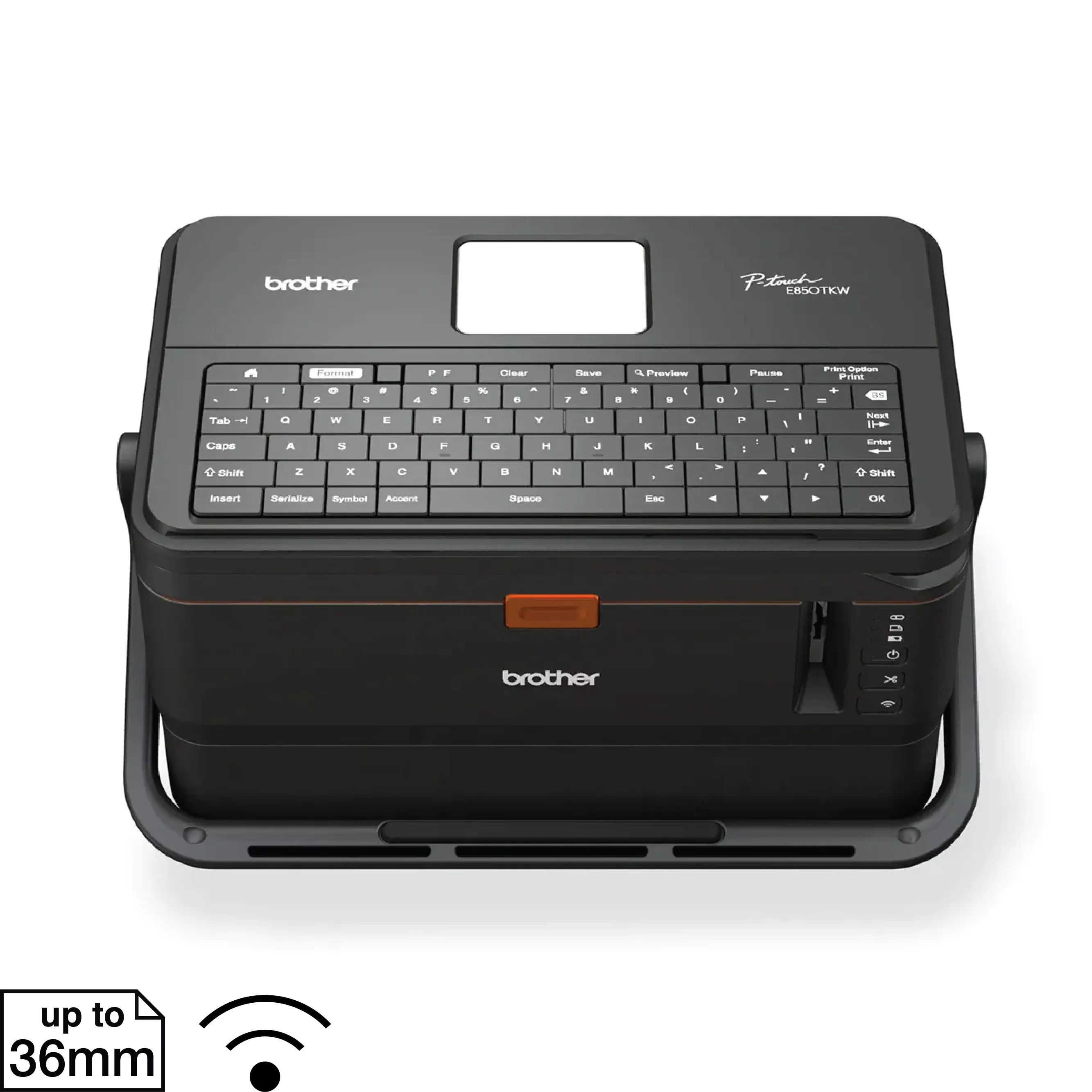

Industrial Tube and Label printer designed to meet the diverse needs of Electricians
54,950.00 PHP
- Print up to 36mm TZe laminated tapes width and φ 2.5 - φ 6.5 PVC Tubes
- QWERTY Keyboard, USB and WiFi connection
- Auto and Half cut function
- Twin-engine for tube and label
- Self-replaceable Tube cleaner, cutter and rollers
- Optional Rechargeable Li-ion battery
Information
Overview
Get the job done in no time with these robust industrial tube printers.

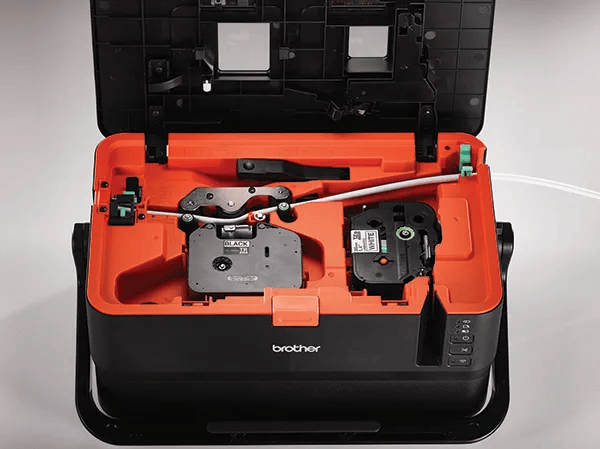

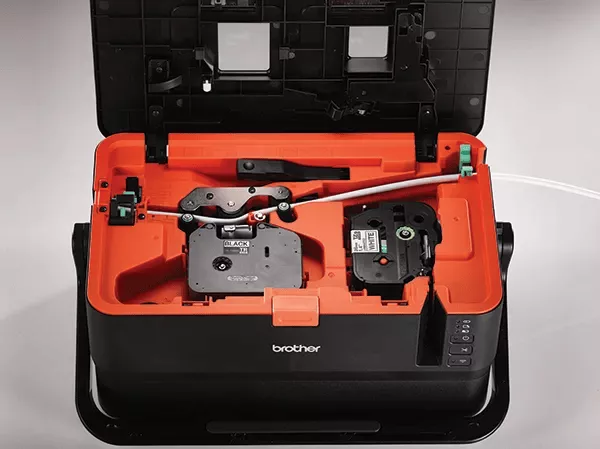

Twin Engines
Meet the first industrial printers with twin engines. With just one machine, you can print on tubes, labels of up to 36mm and other applications; including warning signs and tags.
Zero Fuss

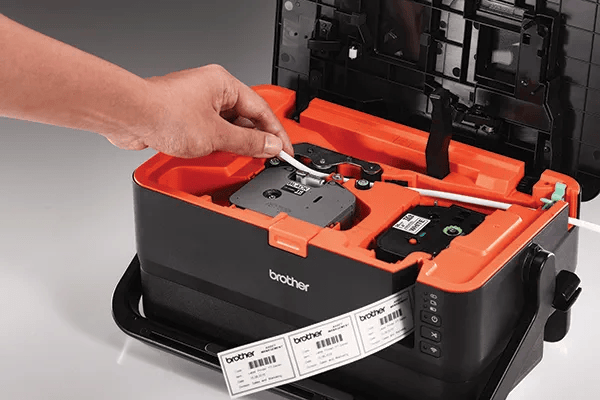

Switch between tube and label printing without replacing or reinserting supplies. Need to replace worn-out parts? You can do it yourself in a few quick steps. It’s that easy.
Perfectly Portable
Get the printer working wherever, whenever with the rechargeable Li-ion battery* and wireless capability.
*The rechargeable Li-ion battery and battery base have to be purchased separately.
Durable Labels
The printers are compatible with TZe tapes, the toughest auto-laminated labels in the market. Ideal for industrial use, TZe is resistant to water, grease and harsh weather conditions.

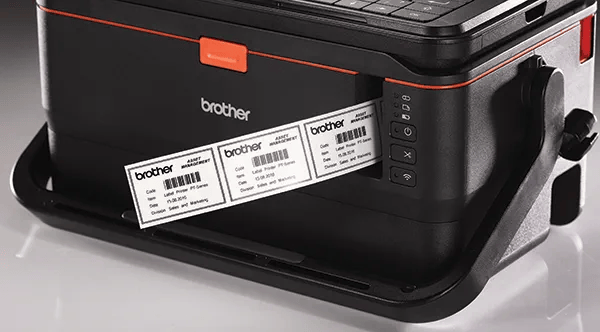

Maximum Printability
Print more on each label and ensure the legibility of your text with the benefit of additional printable height.

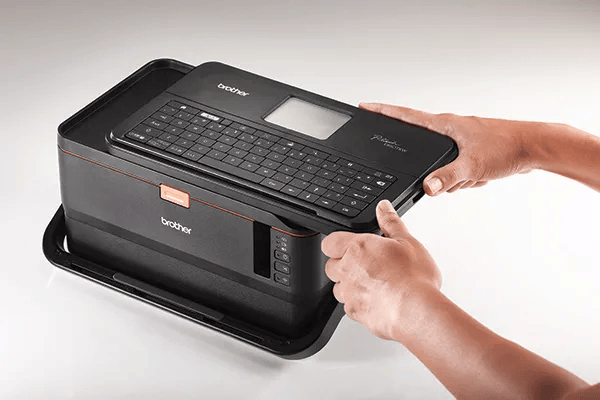

Compact Design

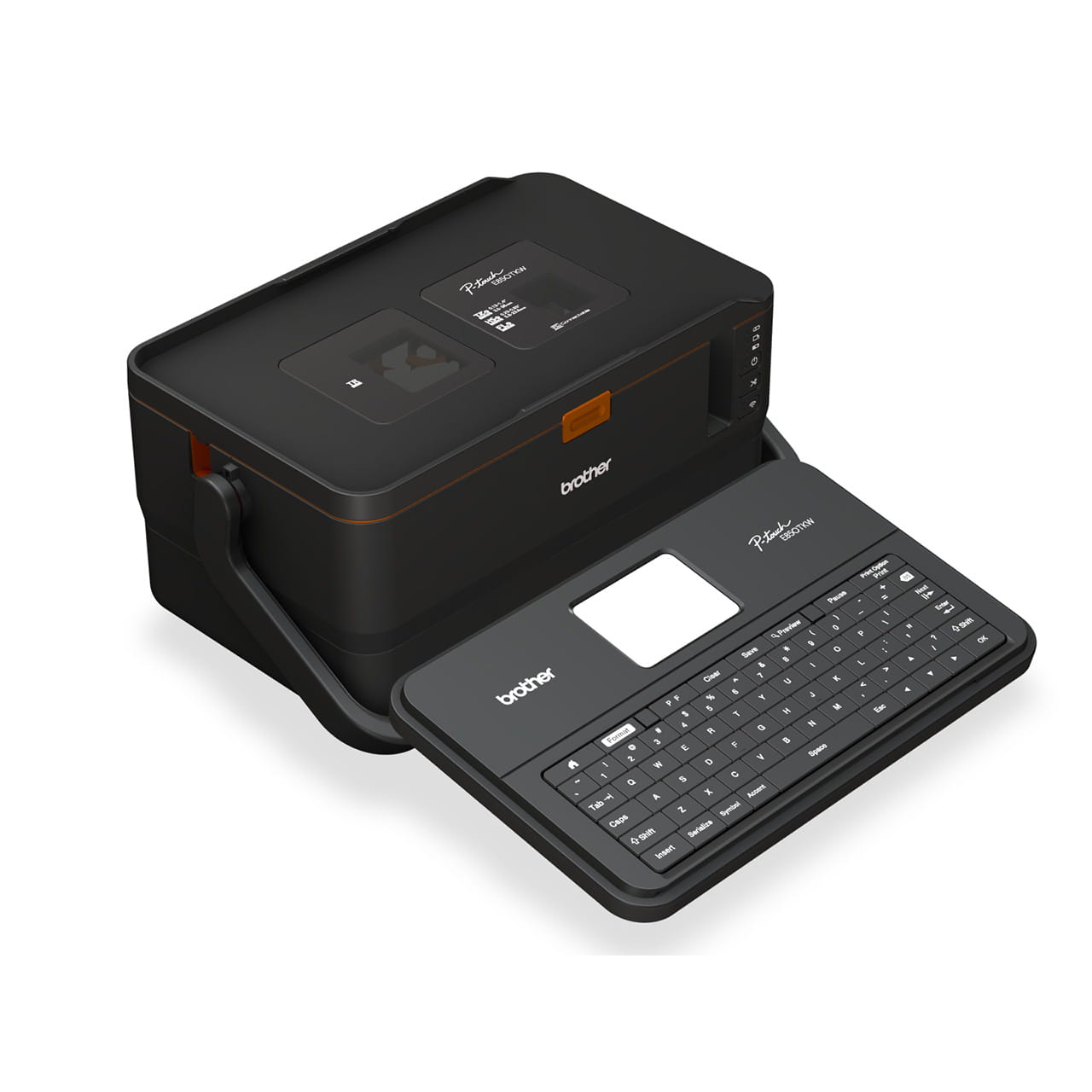

The keyboard can be placed directly on top of the printer, saving extra space on every workplace.
Specifications
Basic Specs
Keyboard
QWERTY
Media Type
TZe Laminated Tape, HGe Laminated Tape, HSe Heat Shrink Tube
Available Tape Widths
TZe: 3.5, 6, 9, 12, 18, 24, 36mm, HGe: 6, 9, 12, 18, 24, 36mm, HSe: 5.8, 8.8, 11.7, 17.7, 23.6mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 173 mm
Weight
4.6 kg
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Number of Characters
826
Number of Symbols
465
Barcode

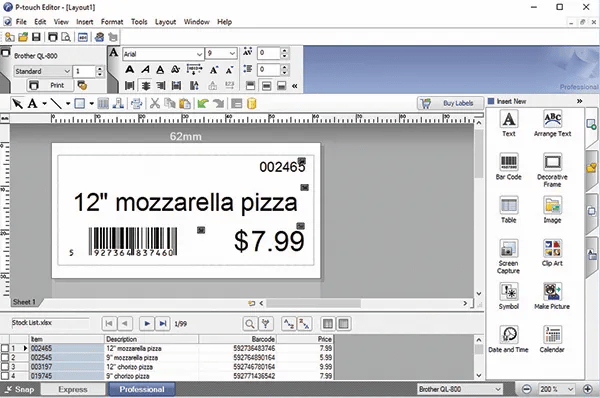

21 barcode protocols on P-touch Editor 5.1
Connectivity
Connectivity
USB version 2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11b (Ad-Hoc Mode), IEEE 802.11n (Wireless Direct), WPS 2.0
Media
Maximum Tape Width
Up to 36 mm
Functions
Cutter
Auto and half cutter
Mirror Printing
Yes
Memory
File Storage
99 files
Memory Buffer Size
up to 40,000 chrs
Power
Power Source
Adapter AC adapter (AD9100ESA): 24 V Battery (Optional)
Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-Off
Li-ion Battery (PA-BT-4000LI): 30 min
